Upright Chiller Freezer Commercial Upright Freeze YRG-S151

Manual

Add to Cart

If you have a detailed purchasing list, please contact us directly with attachments.

◉Model: YRG-S151

◉Material: Stainless Steel

◉Name: Reach-In Freezer

◉Power Supply: Electric

◉Rated Power(W): 490

◉Refrigeration Type: Ventilated

◉Net Capacity(L): 410

◉Temperature(℃): -18~-22

◉Refrigerant: R404a/R290

◉Dimension(L*W*H mm): 625*760*2010

◉Net Weight(kg): 107

Overview

The Upright Freezer is a standalone refrigeration appliance specifically designed for freezing and storing food items at sub-zero temperatures. With its vertical, space-saving design, it offers convenient access and efficient organization of frozen goods. Upright Freezers come in various sizes and capacities, providing ample storage space for both commercial and residential use. They feature adjustable shelves, baskets, or drawers, allowing for easy arrangement and retrieval of frozen items. Upright Freezers offer precise temperature control, ensuring optimal freezing conditions to maintain the quality and freshness of food over an extended period. They are essential appliances in kitchens, foodservice establishments, and households that require efficient and reliable frozen food storage.

Standard Features

◉The fuselage is made of 0.8mm thick SS201&304 stainless steel, which has strong corrosion resistance, high hardness, and is not easily deformed. The foam layer is not easy to fall off.

◉It adopts integral foaming process, with a smooth and beautiful appearance. The foam thickness is 70mm for upright freezer. The foam density is 43KG/m³.

◉The compressor uses Germany's Embraco refrigeration compressor, which has a long service life, low failure rate, fast cooling, energy-saving and noise reduction, and low noise level (below 55-60 decibels).

◉The temperature controller uses Italy's Carel temperature controller for precise temperature control and energy-saving.

◉It uses Italy's ELCO motor, which has a long service life, low failure rate, energy-saving, and noise reduction.

◉The fan uses Taiwan's SUNON, which has high air volume, low noise, high temperature resistance, and long service life.

◉The material of the pipes is all copper, which provides strong refrigeration and energy-saving.

◉Automatic return door.

◉Magnetic sealing strip: strong sealing, good insulation effect.

◉Automatic defrost function: the water generated during defrosting is evaporated by the waste heat of the condenser. There is no need to install a floor drain in the refrigerated cabinet area, and it is energy-saving and environmentally friendly.

◉It adopts air cooling. The advantages of air cooling: even temperature distribution and fast cooling. The disadvantage is that it causes the loss of moisture in stored food, so it is recommended to use packaging or storage containers.

◉Environmental requirements: Below 35 degrees Celsius. The cooling effect will be affected if the ambient temperature exceeds 35 degrees Celsius, so special customization is required.

◉It uses Fulterer guide rails from Italy, which have strong load-bearing capacity.

Function

◉Exterior Cabinet: The exterior cabinet forms the main structure of the unit, providing insulation and housing for the various components.

◉Freezer Compartment: The freezer compartment is designed to maintain temperatures below freezing, typically around -18 to -22 degrees Celsius. It is used for freezing and storing items such as meat, seafood, frozen vegetables, ice cream, and other frozen foods.

◉Compressor: The compressor is the main component that circulates the refrigerant throughout the system. It compresses the low-pressure refrigerant vapor into a high-pressure, high-temperature vapor.

◉Condenser: The condenser dissipates heat from the compressed refrigerant. It is usually located at the rear or bottom of the unit and helps convert the refrigerant from a vapor to a liquid state.

◉Evaporator: The evaporator is where the refrigerant absorbs heat from the freezer compartments, causing it to evaporate and cool the surrounding air.

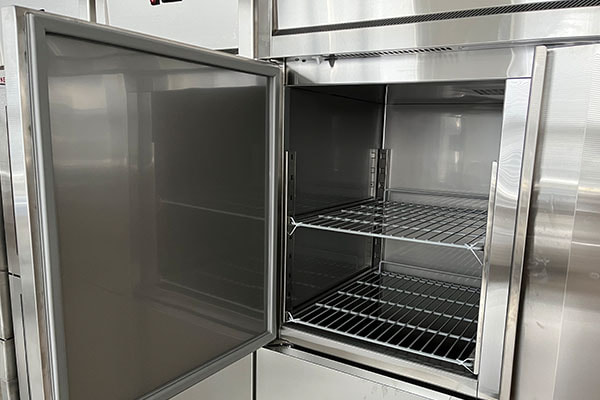

◉Interior Storage Space: The interior of the freezer is divided into compartments and shelves to provide storage space for different types of food items. Adjustable shelves, door racks, and drawers are often included to help organize and optimize storage.

◉Doors: Upright freezers typically have separate doors for the chiller compartment and the freezer compartment. These doors are equipped with seals to maintain an airtight environment and prevent temperature exchange between the two compartments and the external environment.

◉Temperature Control: Freezers feature temperature control mechanisms to adjust and maintain the desired temperatures for the freezer compartments. These controls can be in the form of thermostats, digital displays, or electronic control panels.

◉Interior Lighting: Many upright freezers include interior lighting to improve visibility and make it easier to locate items inside.

◉Drainage System: Some models may have a built-in drainage system to collect and channel condensation or excess water from the freezer compartments.

Optional Features

◉The doors of Upright Freezer can be changed into glass doors according to customer requirements, which helps customers can easily see the inside of the machine.
