Upright Chiller Freezer Commercial Upright Chiller YRG-S148

Manual

Add to Cart

If you have a detailed purchasing list, please contact us directly with attachments.

◉Model: YRG-S148

◉Material: Stainless Steel

◉Name: Reach-In Refrigerator

◉Power Supply: Electric

◉Rated Power(W): 440

◉Refrigeration Type: Ventilated

◉Net Capacity(L): 890

◉Temperature(℃): +2~+8

◉Refrigerant: R134a/R290

◉Dimension(L*W*H mm): 1220*760*2010

◉Net Weight(kg): 181

Overview

The Upright Chiller is a refrigeration appliance designed to provide a controlled and cold environment for storing perishable food items at above-freezing temperatures. It features a vertical, space-efficient design, allowing for easy organization and access to chilled products. Upright Chillers typically offer adjustable shelves, drawers, or racks to accommodate various food items. They are commonly used in commercial settings such as restaurants, cafes, and grocery stores to keep ingredients, beverages, and pre-prepared food items fresh and at the desired temperature. Upright Chillers offer reliable cooling performance, temperature stability, and energy efficiency, making them essential equipment for preserving food quality and ensuring food safety.

Standard Features

◉The fuselage is made of 0.8mm thick SS201&304 stainless steel, which has strong corrosion resistance, high hardness, and is not easily deformed. The foam layer is not easy to fall off.

◉It adopts integral foaming process, with a smooth and beautiful appearance. The foam thickness is 70mm for upright chiller. The foam density is 43KG/m³.

◉The compressor uses Germany's Embraco refrigeration compressor, which has a long service life, low failure rate, fast cooling, energy-saving and noise reduction, and low noise level (below 55-60 decibels).

◉The temperature controller uses Italy's Carel temperature controller for precise temperature control and energy-saving.

◉It uses Italy's ELCO motor, which has a long service life, low failure rate, energy-saving, and noise reduction.

◉The fan uses Taiwan's SUNON, which has high air volume, low noise, high temperature resistance, and long service life.

◉The material of the pipes is all copper, which provides strong refrigeration and energy-saving.

◉Automatic return door.

◉Magnetic sealing strip: strong sealing, good insulation effect.

◉Automatic defrost function: the water generated during defrosting is evaporated by the waste heat of the condenser. There is no need to install a floor drain in the refrigerated cabinet area, and it is energy-saving and environmentally friendly.

◉It adopts air cooling. The advantages of air cooling: even temperature distribution and fast cooling. The disadvantage is that it causes the loss of moisture in stored food, so it is recommended to use packaging or storage containers.

◉Environmental requirements: Below 35 degrees Celsius. The cooling effect will be affected if the ambient temperature exceeds 35 degrees Celsius, so special customization is required.

◉It uses Fulterer guide rails from Italy, which have strong load-bearing capacity.

Function

◉Exterior Cabinet: The exterior cabinet forms the main structure of the unit, providing insulation and housing for the various components.

◉Chiller Compartment: The chiller compartment is the refrigerated section of the unit. It is designed to maintain a temperature above freezing, typically around 2-8 degrees Celsius (36-46 degrees Fahrenheit). This section is used for storing perishable items such as fruits, vegetables, dairy products, and beverages.

◉Compressor: The compressor is the main component that circulates the refrigerant throughout the system. It compresses the low-pressure refrigerant vapor into a high-pressure, high-temperature vapor.

◉Condenser: The condenser dissipates heat from the compressed refrigerant. It is usually located at the rear or bottom of the unit and helps convert the refrigerant from a vapor to a liquid state.

◉Evaporator: The evaporator is where the refrigerant absorbs heat from the chiller compartments, causing it to evaporate and cool the surrounding air.

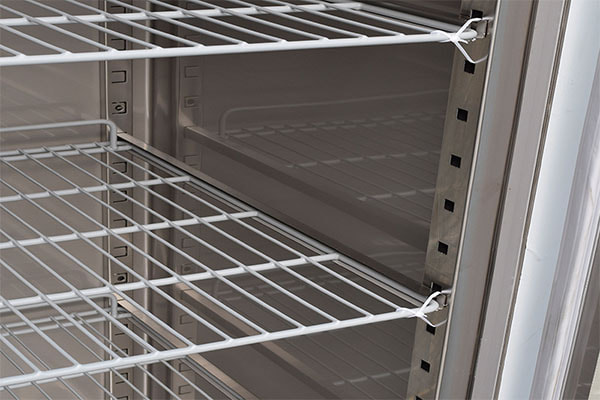

◉Interior Storage Space: The interior of the chiller is divided into compartments and shelves to provide storage space for different types of food items. Adjustable shelves, door racks, and drawers are often included to help organize and optimize storage.

◉Door(s): Upright chillers typically have one or more doors to access the chiller compartment. These doors are equipped with seals to maintain an airtight environment and prevent temperature exchange between the interior and the external environment.

◉Temperature Control: Chillers feature temperature control mechanisms to adjust and maintain the desired temperature inside the chiller compartment. These controls can be in the form of thermostats, digital displays, or electronic control panels.

◉Interior Lighting: Many upright chillers include interior lighting to improve visibility and make it easier to locate items inside.

◉Drainage System: Some models may have a built-in drainage system to collect and channel condensation or excess water from the chiller compartment.

Optional Features

◉The doors of Upright Chiller can be changed into glass doors according to customer requirements, which helps customers can easily see the inside of the machine.
