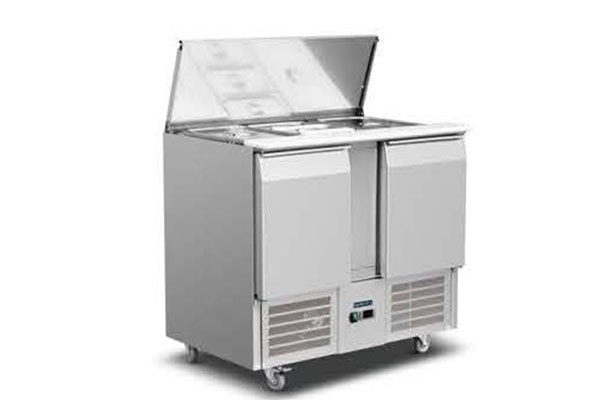

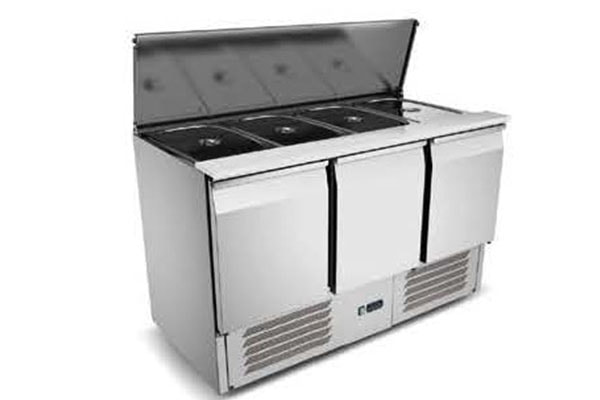

Salad Refrigerator Saladette Refrigerated Counter YRG-S059

Manual

Add to Cart

If you have a detailed purchasing list, please contact us directly with attachments.

◉Model: YRG-S059

◉Material: Stainless Steel

◉Name: Salad Prep Table Refrigerator

◉Power Supply: Electric

◉Rated Power(W): 321

◉Refrigeration Type: Static cooling

◉Net Capacity(L): 390

◉Temperature(℃): +2~+8

◉Refrigerant: R134a/R290

◉GN Pan Configurations: four 1/1 GN Pans

◉Dimension(L*W*H mm): 1365*700*887

◉Net Weight(kg): 87

Overview

The Saladette Refrigerated Counter is a versatile and essential product for food preparation in commercial kitchens. This refrigerated counter is specifically designed to store and display ingredients for salads and sandwiches. It features a refrigerated compartment with adjustable temperature controls to keep perishable items fresh and cool. The counter also includes a top workspace for efficient food preparation, allowing chefs to assemble salads and sandwiches with ease. With its compact yet spacious design, the Saladette Refrigerated Counter optimizes space utilization in busy kitchen environments. It is an indispensable tool for restaurants, delis, and catering services, providing convenience and efficiency in food preparation and storage.

Standard Features

◉The fuselage is made of 0.8mm thick SS201&304 stainless steel, which has strong corrosion resistance, high hardness, and is not easily deformed. The foam layer is not easy to fall off.

◉It adopts integral foaming process, with a smooth and beautiful appearance. The foam density is 43KG/m³.

◉The compressor uses Germany's Embraco refrigeration compressor, which has a long service life, low failure rate, fast cooling, energy-saving and noise reduction, and low noise level (below 55-60 decibels).

◉The temperature controller uses Italy's Carel temperature controller for precise temperature control and energy-saving.

◉It uses Italy's ELCO motor, which has a long service life, low failure rate, energy-saving, and noise reduction.

◉The fan uses Taiwan's SUNON, which has high air volume, low noise, high temperature resistance, and long service life.

◉The material of the pipes is all copper, which provides strong refrigeration and energy-saving.

◉Automatic return door.

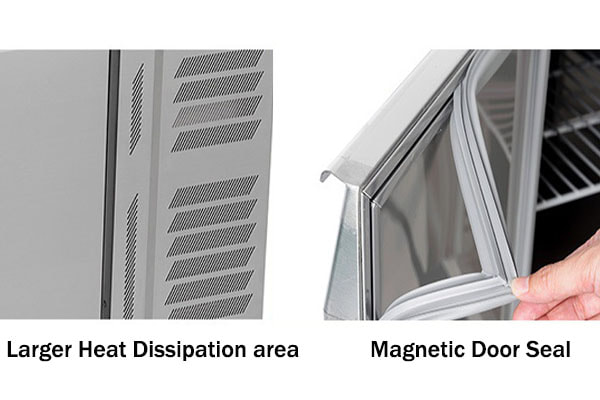

◉Magnetic sealing strip: strong sealing, good insulation effect.

◉Automatic defrost function: the water generated during defrosting is evaporated by the waste heat of the condenser. There is no need to install a floor drain in the refrigerated cabinet area, and it is energy-saving and environmentally friendly.

◉It adopts air cooling. The advantages of air cooling: even temperature distribution and fast cooling. The disadvantage is that it causes the loss of moisture in stored food, so it is recommended to use packaging or storage containers.

◉Environmental requirements: Below 35 degrees Celsius. The cooling effect will be affected if the ambient temperature exceeds 35 degrees Celsius, so special customization is required.

Function

◉Exterior Cabinet: This is the outer casing or shell of the refrigerated counter. It provides structural support and houses the other components.

◉Insulation: Insulation material lines the walls and doors of the refrigerated counter to help maintain a consistent temperature and reduce energy consumption.

◉Compressor: The compressor is the heart of the refrigeration system. It compresses the refrigerant gas, raising its temperature and pressure.

◉Condenser: The condenser is responsible for dissipating heat from the refrigerant. It is usually located at the rear or bottom of the refrigerated counter and consists of a series of coils or a heat-exchanging mechanism.

◉Evaporator: The evaporator is responsible for cooling the air inside the unit. It absorbs heat from the interior and cools the circulated air. It is typically located inside the counter, often hidden behind a panel or wall.

◉Control Panel: The control panel is where you can find temperature controls, digital displays, and other settings to regulate the cooling process. It allows you to adjust the temperature and monitor the operation of the refrigerated counter.

◉GN Pans: The GN Pans are used to store and display fresh ingredients for salads and sandwiches. They help keep the ingredients chilled, organized, and readily accessible, allowing for efficient food preparation and assembly.

◉Doors: The refrigerated counter may have one or multiple doors, providing access to the interior compartments. The doors are typically insulated and may include features like gaskets, handles, and locks.

◉Drainage System: Some Saladette Refrigerated Counters have a drainage system to collect and remove excess water or condensation. This helps keep the interior clean and prevents water buildup.

Optional Features

◉This Saladette Refrigerated Counter can be customized with marble countertops according to customer requirements. The size of GN Pans can also be customized to fit the buffet.
