Commercial Chiller Counter With 2 Doors YRG-S067

Counter Chiller Freezer Commercial Chiller Counter With 2 Doors YRG-S067

Manual

Add to Cart

If you have a detailed purchasing list, please contact us directly with attachments.

◉Model: YRG-S067

◉Material: Stainless Steel

◉Name: Worktop Refrigerator

◉Power Supply: Electric

◉Rated Power(W): 320

◉Refrigeration Type: Ventilated

◉Net Capacity(L): 360

◉Temperature(℃): 2~8, -15~-20

◉Trays(Pcs): 10

◉Depth of Tray(mm): 65

◉Dimension(L*W*H mm): 1510*800*850

◉Packing Size(L*W*H mm): 1570*840*910

◉Net Weight(kg): 113

Overview

The Worktop Refrigerator is a compact and versatile refrigeration appliance designed for commercial use. It combines a convenient work surface on top with refrigerated storage below, providing a space-saving solution in busy kitchens. The refrigerator section typically features adjustable shelves or drawers for organizing food items, while the durable worktop surface allows for food preparation or additional workspace. Worktop Refrigerators are commonly used in restaurants, cafes, and foodservice establishments, offering easy access to chilled ingredients while maximizing efficiency in food preparation. Their compact size and sturdy construction make them suitable for tight spaces, ensuring optimal functionality in busy culinary environments.

Standard Features

◉The fuselage is made of 0.8mm thick SS201&304 stainless steel, which has strong corrosion resistance, high hardness, and is not easily deformed. The foam layer is not easy to fall off.

◉It adopts integral foaming process, with a smooth and beautiful appearance. The foam thickness is 60mm for worktop refrigerator. The foam density is 43KG/m³.

◉The compressor uses Germany's Embraco refrigeration compressor, which has a long service life, low failure rate, fast cooling, energy-saving and noise reduction, and low noise level (below 55-60 decibels).

◉The temperature controller uses Italy's Carel temperature controller for precise temperature control and energy-saving.

◉It uses Italy's ELCO motor, which has a long service life, low failure rate, energy-saving, and noise reduction.

◉The fan uses Taiwan's SUNON, which has high air volume, low noise, high temperature resistance, and long service life.

◉The material of the pipes is all copper, which provides strong refrigeration and energy-saving.

◉Automatic return door.

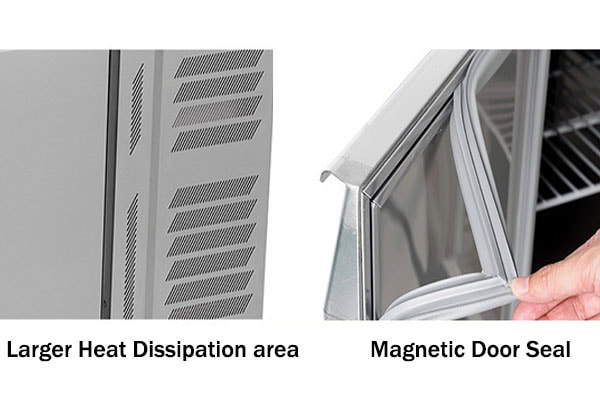

◉Magnetic sealing strip: strong sealing, good insulation effect.

◉Automatic defrost function: the water generated during defrosting is evaporated by the waste heat of the condenser. There is no need to install a floor drain in the refrigerated cabinet area, and it is energy-saving and environmentally friendly.

◉It adopts air cooling. The advantages of air cooling: even temperature distribution and fast cooling. The disadvantage is that it causes the loss of moisture in stored food, so it is recommended to use packaging or storage containers.

◉Environmental requirements: Below 35 degrees Celsius. The cooling effect will be affected if the ambient temperature exceeds 35 degrees Celsius, so special customization is required.

◉It uses Fulterer guide rails from Italy, which have strong load-bearing capacity.

Function

◉Exterior Cabinet: The exterior cabinet houses the entire refrigerator unit, providing structural support and insulation to maintain the desired temperature inside.

◉Worktop Surface: The worktop surface is the flat area on the top of the refrigerator that can be used as a workspace for food preparation or as a storage area for small kitchen appliances and utensils.

◉Compressor: The compressor is responsible for circulating the refrigerant through the system. It compresses the low-pressure, low-temperature refrigerant vapor into a high-pressure, high-temperature vapor.

◉Condenser: The condenser helps dissipate heat from the compressed refrigerant. It is usually located at the rear or bottom of the refrigerator and consists of coils or a finned structure to facilitate heat exchange with the surrounding air.

◉Evaporator: The evaporator is where the refrigerant absorbs heat from the interior of the refrigerator, causing it to evaporate into a low-pressure, low-temperature vapor.

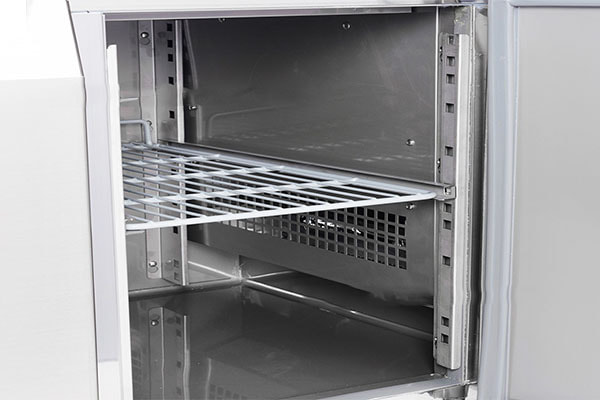

◉Interior Storage Space: The interior of the refrigerator is divided into compartments and shelves to provide storage space for food and beverages. It typically includes adjustable shelves, door racks, and sometimes drawers to help organize different items.

◉Door(s): The refrigerator door(s) provide access to the interior storage space. They are equipped with seals to maintain an airtight environment and prevent cold air from escaping.

◉Temperature Control: Worktop refrigerators have temperature control mechanisms to adjust and maintain the desired temperature inside the unit. These controls can be in the form of a thermostat, digital display, or electronic control panel.

◉Drainage System (optional): Some models may have a built-in drainage system to collect and channel condensation or excess water from the refrigerator.

Optional Features

◉This counter refrigerator can be customized according to customer requirements to have a stainless steel backsplash style with a height of 100mm, which helps prevent water from reaching the back of the machine. Additionally, it can also be made with a locking door feature to enhance the security of the refrigerator.
